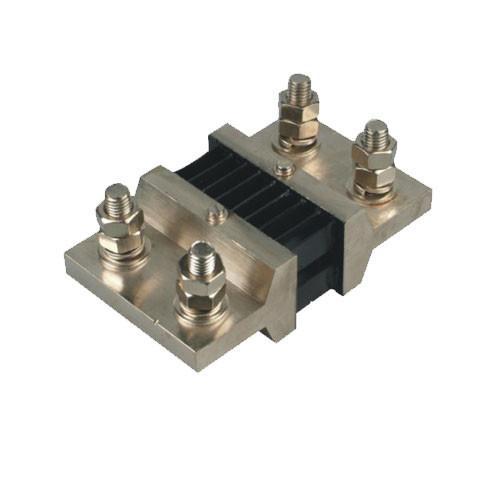

Manganin Resistive Shunt 1000a 50mv 75mV 0.5% accuracy for DC Meter

1000A 75mV Precision Current, used for DC Meter with 0.5% accuracy

Power Rating: Watts (W) = Current (I2) x Resistance Value (R)The heat produced is power measured in Watts (W).
Current shunts dissipate heat from the current flowing through them, when they get hot.
In practice current shunt is often rated to be used continuously at only 2/3 of their "rated current".
Since that heat can change their resistance and even permanently damage the shunt, so it is often given a power rating or a derating factor.
Calculate Current : Current (I) = Voltage (V) / Resistance Value (R)By inserting a current shunt into a circuit to get the current you want to measure while the voltage dropped across the shunt.
Then knowing the resistance of the current shunt you can calculate the current by using Ohm's law.

Features:

1. Base Mounted Shunt
2. Current Rating up to 15,000 Amps
3. 50mV, 60mV, 75mV, 100mV or Custom Output
4. Standard Tolerance ±0.5%
5. Manganin Resistive Element
6. Common Applications: Solar Generators, Wind Power, Heavy Industry, Electroplating, Battery Chargers, Mining

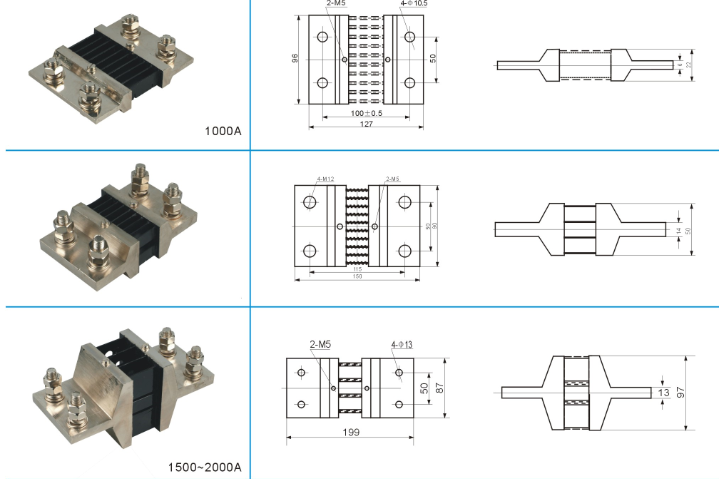

Dimensions(1000A-2000A 75mV):

Manganin Resistive Shunt 1000a 50mv

Shunt 1000a 50mv 75mV

Manganin Resistive Shunt 1000a 50mv 75mV 0.5% accuracy for DC Meter Images
