25W-500W Wirewound Rheostat , Adjustable Rotary Type Rheostat

Brand Name : JDC

Model Number : BC

Place of Origin : CHINA

MOQ : 200

Price : US$1.2-US$3.5

Payment Terms : T/T, Western Union

Supply Ability : 100,000PCS per month

Delivery Time : 2 Weeks

Packaging Details : Bulk in Carton

Certification : ROHS

Rated power : 25W to 500W

Resistance range : 5Ω ~ 5KΩ

Contact Now

Wirewound Rheostat, Adjustable Resistors, high power, wide resistance range

Wirewound Rheostat is a C-shaped ceramic rod and wound with copper or chromium-alloy wire as a resistance element. Except for the slide contact surface, the entire component is coated with a high-temperature, non-flammable resin. Rheostat is a variable resistor which is used to control current.

Features:

1. Wide Max. Resistance range: 3Ω ~ 5KΩ.

2. Standard resistance tolerance is K(±10%).

3. Closer tolerances are available upon request.

4. Rated power: 25W to 500W

Main Application:

1. Motor controller, blenders, mixers, fans, and power tools.

2. Test instruments to provide an accurate resistance value.

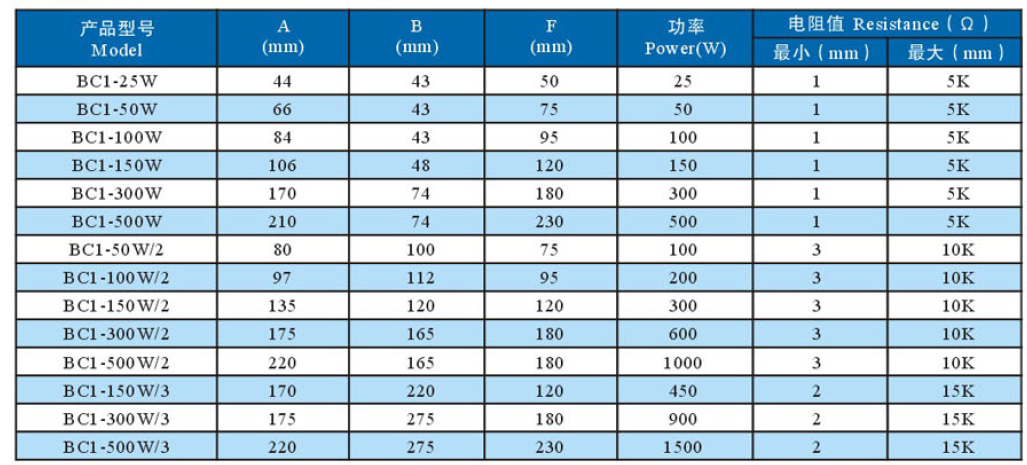

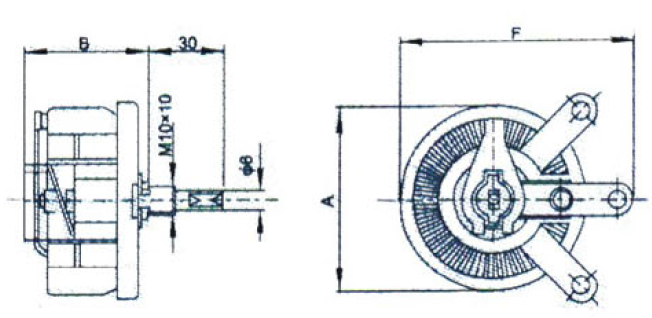

Dimensions:

25W-500W Wirewound Rheostat , Adjustable Rotary Type Rheostat
